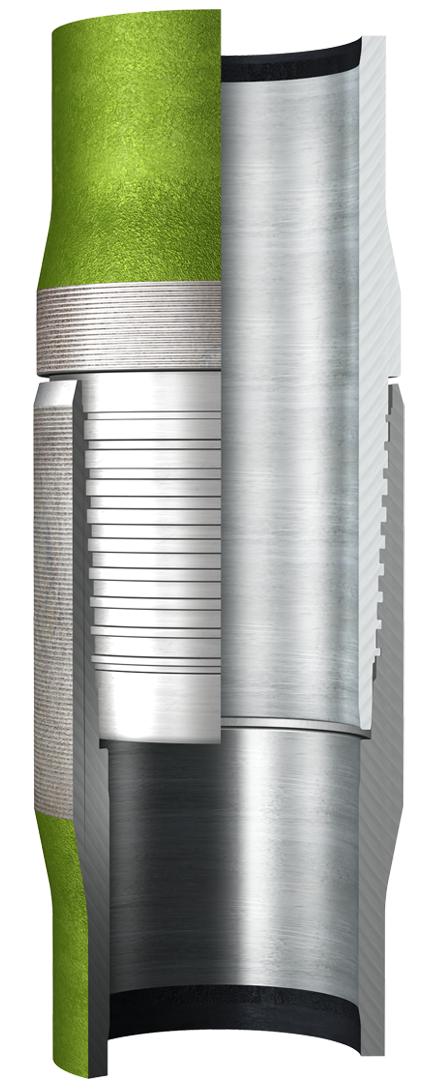

Wedge 533®
Integral upset TenarisHydril Wedge™ connection, robustness is its most valued strength. Excellent for workstrings and plastic-coated tubing.
Wedge 533®
Gas tight metal seal
100% internal pressure rated, under high axial and bending loads. The shallow angle on the pin ID promotes uniform stress distribution along the seal circumference.
Streamlined, clearance OD
For easy running, pulling and circulating. Torque strength developed through the simultaneous engagement of opposing flanks of the dovetail thread.
Robust upset design
A premium internal/external-upset connection for production tubing, workstrings and plastic-coated tubing. Special applications include drilling with tubing, including through-tubing rotary drilling. Wedge™ Series 500 is field-proven by more than 30 years of history, becoming a standard part of many operations. Reliability and high performance are its main features.
Features
- Sizes 2 ⅜” - 7 ⅝”
- Pin and box are machined on hot forged internal-external upsets.
- 100% ratings for tension, bending, and compression thanks to reverse angle stab flank.
- Wedge 533® is interchangeable with Wedge 553® and Wedge 563®.
- Dopeless®Technology available.
- Available with Corrosion Barrier (CB®) option and TenCoat™ proprietary ID coating.
