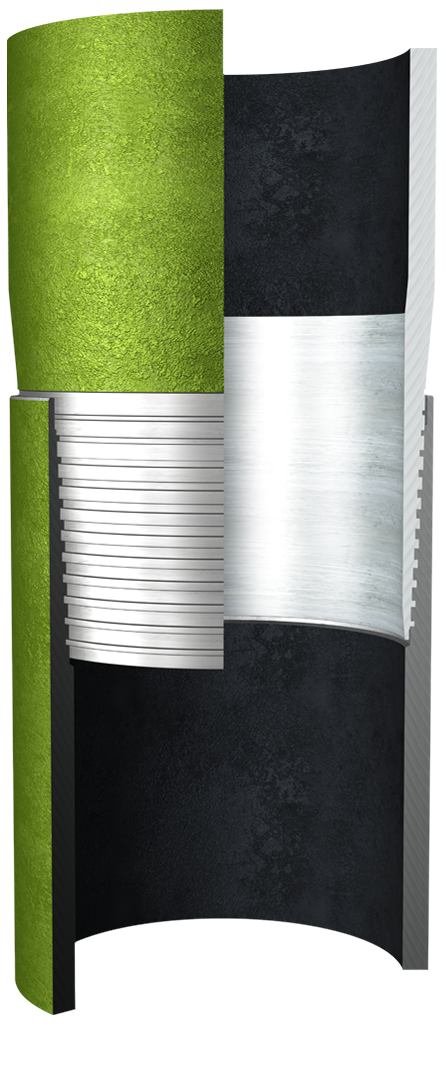

Wedge 511®
Integral true-flush TenarisHydril Wedge connection, with over 25 years of field proven performance. Comes in a comprehensive size range, suitable to applications requiring high clearance.
Wedge 511®
Flush OD
Facilitates running and circulating and eliminates down hole coupling face hang-up.
TenarisHydril Wedge profile
Low TPI, rugged, coarse pitch for fast make-up. Simultaneous engagement of opposing flanks develops high torque strength and compression ratings.
Pin end configuration
The pin end is swaged, stress relieved and ID-machined to allow a standard drift. Easy stabbing is still granted with no risk for the pin end face.
Field-proven true flush
An integral flush connection used in large-diameter, high-clearance surface casing, horizontal, repair and drilling liners, and wash-pipe. Wedge Series 500™ is field-proven by more than 30 years of history, becoming a standard in many operations. Robustness, high torque capability, compression strength are its main features.
Features
- Sizes 2" - 18 ⅝"
- Compression strength exceeds tension strength.
- High structural performance allows rotating and wash-over in deviated holes without affecting thread integrity.
- Dopeless® Technology available.
