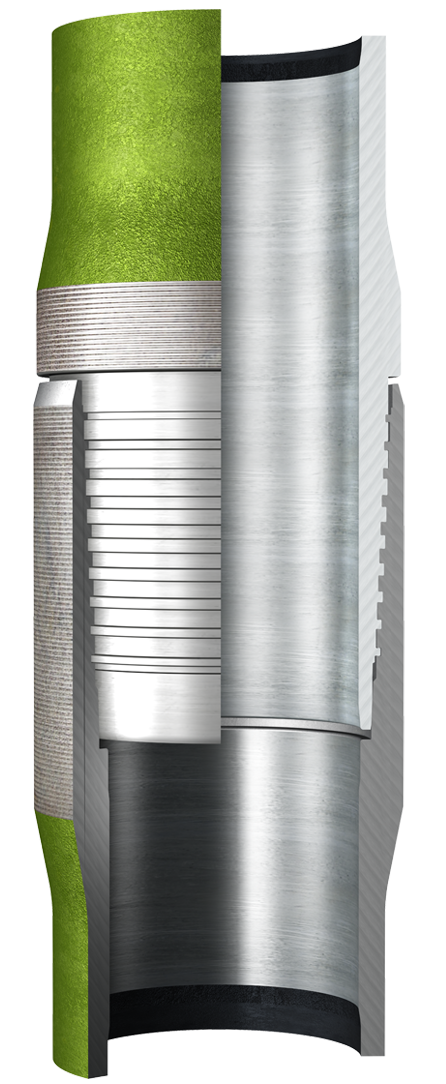

Wedge 533®
Integral upset TenarisHydril Wedge™ connection, robustness is its most valued strength. Excellent for workstrings and plastic-coated tubing.
Wedge 533®
Streamlined, clearance OD
For easy running, pulling and circulating. Torque strength developed through the simultaneous engagement of opposing flanks of the dovetail thread.
Gas tight metal seal
100% internal pressure rated, under high axial and bending loads. The shallow angle on the pin ID promotes uniform stress distribution along the seal circumference.
Robust upset design
A premium internal/external-upset connection for production tubing, workstrings and plastic-coated tubing. Special applications include drilling with tubing, including through-tubing rotary drilling. Wedge™ Series 500 is field-proven by more than 30 years of history, becoming a standard part of many operations. Reliability and high performance are its main features.
Features
- Sizes 2 ⅜” - 7 ⅝”
- Pin and box are machined on hot forged internal-external upsets.
- 100% ratings for tension, bending, and compression thanks to reverse angle stab flank.
- Wedge 533® is interchangeable with Wedge 553® and Wedge 563®.
- Dopeless®Technology available.
- Available with Corrosion Barrier (CB®) option and TenCoat™ proprietary ID coating.
