Wedge 523®
TenarisHydril Wedge integral semi-flush connection with enhanced tension and compression efficiency. Exhaustive track record, suitable to a variety of applications where robustness, sealability and high torque are required.

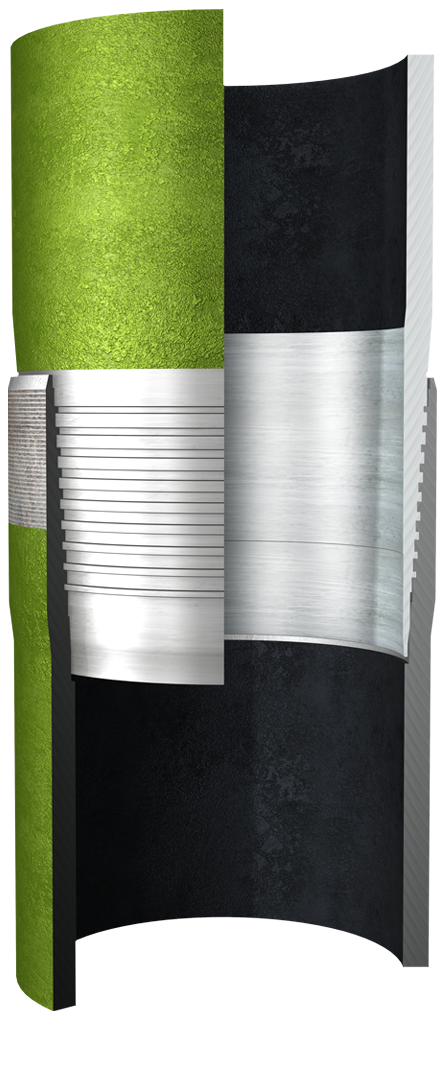

Wedge 523®
OD clearance
1.5–2% of specified pipe body OD.
TenarisHydril Wedge profile
Low TPI, rugged, coarse pitch for fast make-up. Simultaneous engagement of opposing flanks develops high torque strength.
Metal-to-metal seal
100% internal pressure rated, under high axial loads. The patented seal saver protects the seal from handling damage and acts as a stiffener.
Wedge all-round
An integral semi-flush connection designed for production casing, intermediate casing, and drilling and production liners, where high clearance and gas-tight behaviour is required. Wedge Series 500™ is field-proven by more than 30 years of history, becoming a standard in many operations. Reliability and high performance are its main features.
Features
- Sizes 7" - 16"
- High compression ratings: compression strength exceeds tension strength
- Wedge 523® is interchangeable with Wedge 513®
- Dopeless®Technology available
