Innovative development of the original TenarisHydril Wedge technology for production casing in unconventional wells. Provides unrivaled robustness and running efficiency, exceptional torque capacity, high fatigue resistance, and gas sealability tested under Tenaris Protocol for Multi-Fractured Horizontal Wells.
The make-up confirmation band allows for visual confirmation of appropriate make-up, even at operating torque, with no need of Torque vs. Turns chart.
Low TPI, rugged coarse dovetail thread design, deep stabbing. The simultaneous engagement of opposing flanks maximizes torque and compression efficiency.
Sphere-to-cone seal works on different positions depending on the applied torque. Internal shoulder can provide extra torque capacity at operating torque.

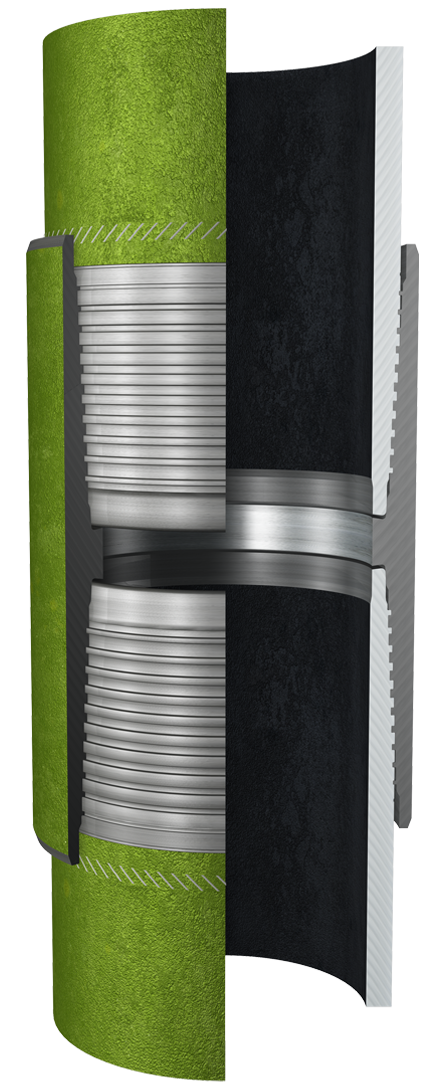

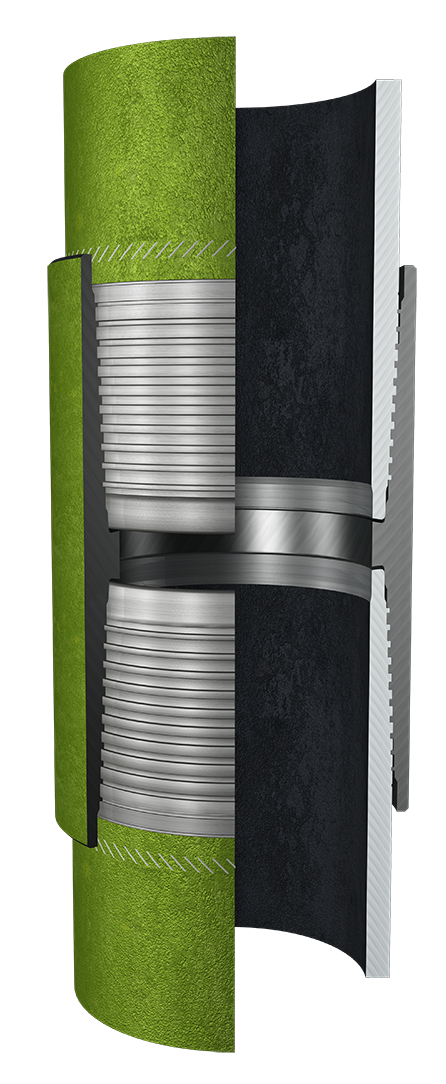

The TenarisHydril Wedge 463® connection is specifically designed for production casing in unconventional wells where exceptionally high torque, gas sealability and optimum fatigue resistance are required. It combines the robust Wedge thread profile with a metal-to-metal seal whose design is taken from the extensively field proven Blue® technology. An internal shoulder provides additional over-torque capacity to handle extreme installation conditions. Tested according to Tenaris Protocol for Multi-Fractured Horizontal Wells that includes fatigue cycling before sealability evaluation and internal pressure cycles to simulate fracture cycles, it is the cutting edge of Series 400™ for exceptional performance and sealability.
We offer a wide array of expert services to support our customers in well planning, supply chain integration and well integrity; enhanced by a suite of digital tools.
TenarisHydril Wedge Series connections provide exceptional torque performance and are recognized as the most robust and fastest running connections in the market.
